3D PRINTED JIG FOR NUCLEAR COMPONENT MANUFACTURING
THE JIG HELPED IMPROVE REPEATABILITY AND PART LOCATION DURING THE CUSTOMER’S PROCESS. IT REDUCED THE NEED FOR MANUAL POSITIONING, HELPED PROTECT COMPONENTS FROM DAMAGE, AND PROVIDED A MORE CONSISTENT METHOD OF HANDLING OR CHECKING NUCLEAR-RELATED PARTS.
What We Made

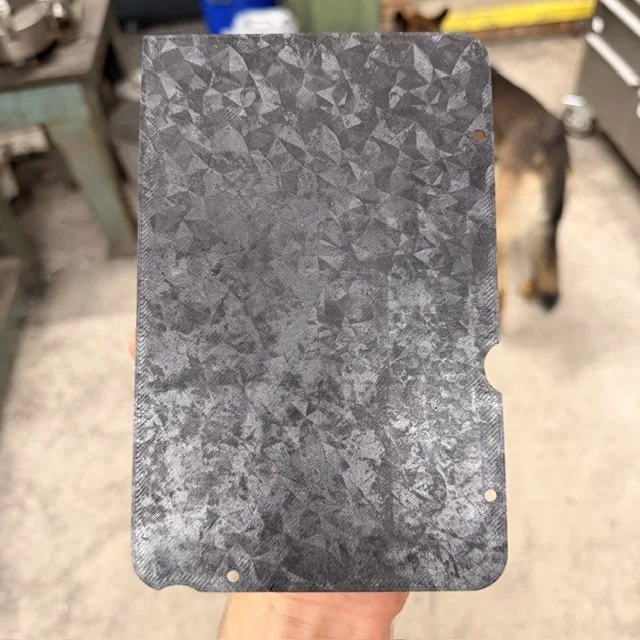

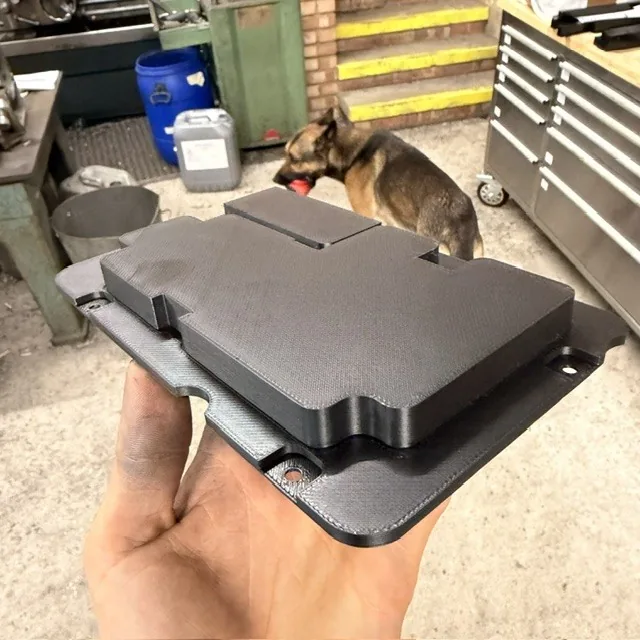

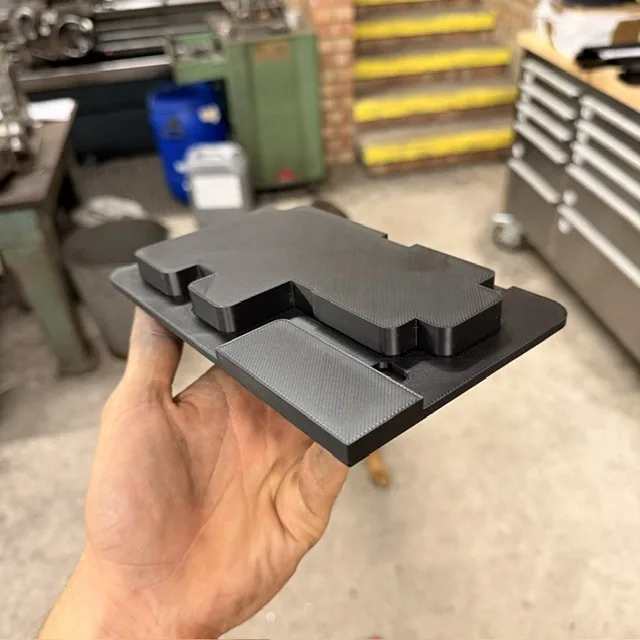

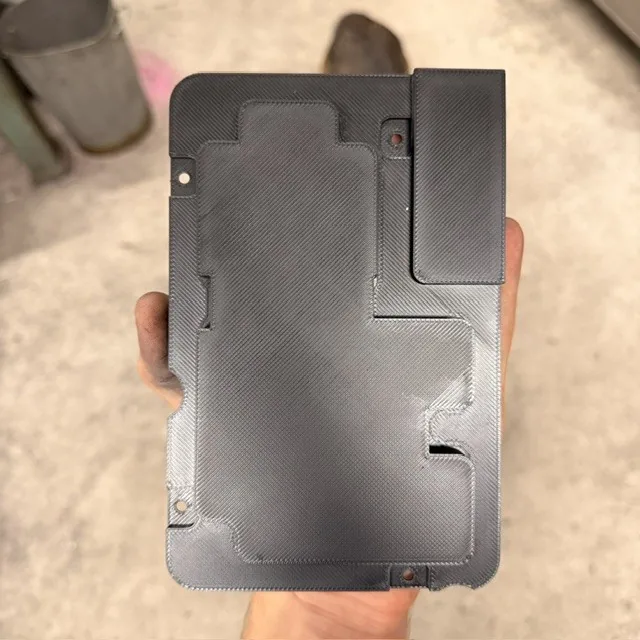

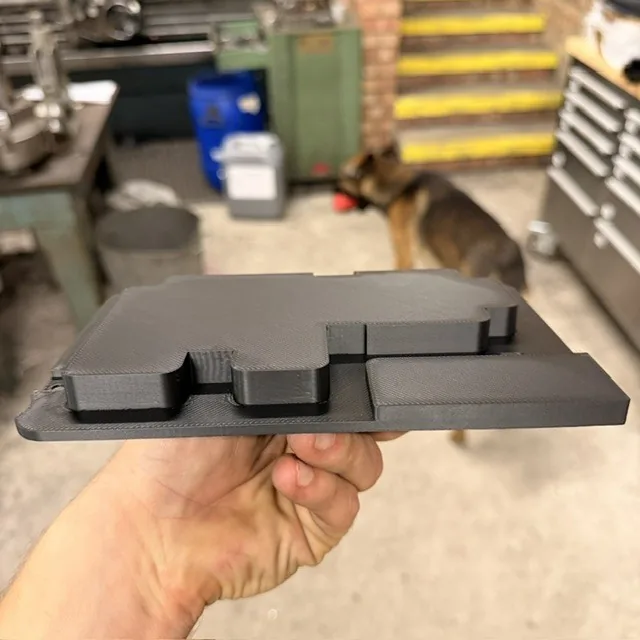

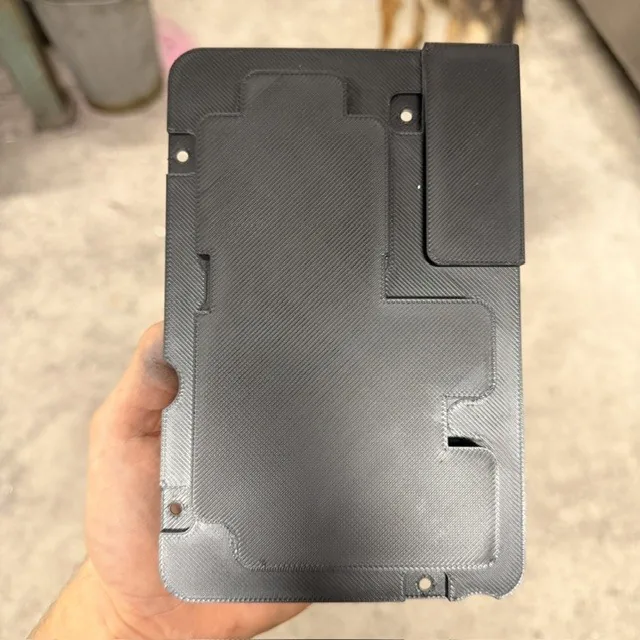

PRECISION 3D PRINTED JIG PRODUCED TO SUPPORT THE HANDLING, POSITIONING OR INSPECTION OF NUCLEAR-RELATED PARTS.
THIS 3D PRINTED JIG WAS PRODUCED TO ASSIST WITH THE ACCURATE LOCATION, SUPPORT OR REPEATABLE HANDLING OF PARTS USED WITHIN A NUCLEAR-RELATED APPLICATION. THE JIG PROVIDES A PRACTICAL WORKSHOP SOLUTION WHERE CONSISTENCY, CONTROL AND PART PROTECTION ARE IMPORTANT DURING MANUFACTURE, ASSEMBLY OR INSPECTION.
BY USING INDUSTRIAL 3D PRINTING, THE JIG COULD BE PRODUCED WITH A PURPOSE-BUILT GEOMETRY TO SUIT THE COMPONENT REQUIREMENTS WITHOUT THE NEED FOR TRADITIONAL MACHINED TOOLING.
